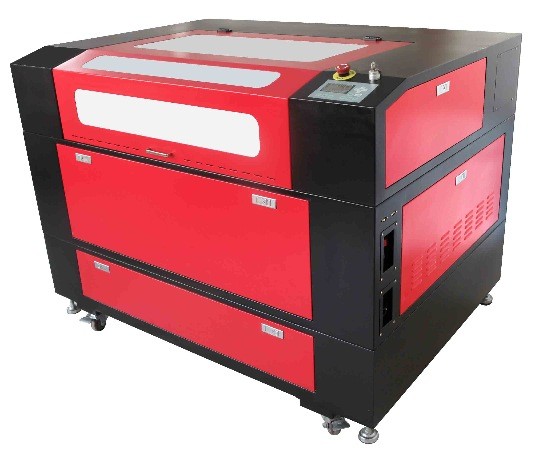

Redsail Laser Engraver is a kind of Laser Engraving Machine System equipped with Co2 laser Tube, It is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass, among others. it is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes, toys and etc.
The Co2 Laser power of Redsail M series Laser Engraver is from 40W to 60W
| Model |
M700 |
M900 |
| Laser tube |
Water cooling sealed glass Co2 |
| Control system |
32 Bit DSP |
| Drive type |
Stepper motor |
| Laser Power |
50W |
60W |
| Working Size (mm) |
500 x 700 |
600 x 900 |
| Adjust Table |
260 |
260 |
| Max speed |
1000 mm/s |
| Image form |
Plt, Dxf, Bmp, Ai, Dst |
| Resolution |
1000 DPI |
2500 DPI |
| Repeatability |
0.01 mm |
| PC Interface |
USB2.0 and USB Disk |
| Power |
110~240V/ 50~60Hz |
| Warranty |
12 Months |
| Machine dimensions (mm) |
1150*860*1030 |
1500*1060*1140 |
| Package dimensions (mm) |
1740*1030*1210 |
2100*1200 |
